Shaped closure members sized per schedule align along the exterior perimeter. Framing connectors secure the trusses below with A35 clips placed at each corner and spaced at twenty-four inches on center, supplemented by A35 clips on each side.

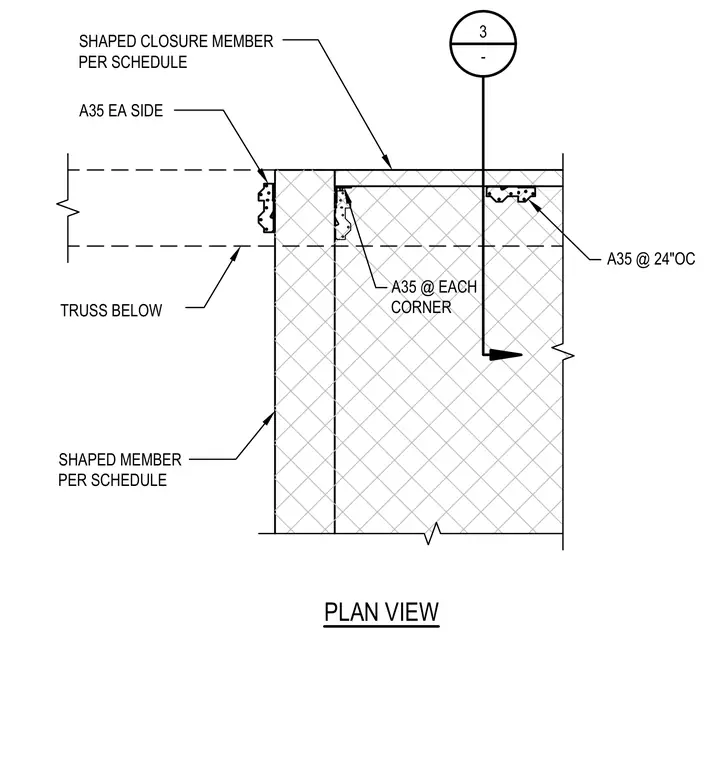

SHAPED CLOSURE MEMBER PER SCHEDULE SHAPED MEMBER PER SCHEDULE A35 EA SIDE A35 @ EACH CORNER TRUSS BELOW A35 @ 24"OC 3 - PLAN VIEW
