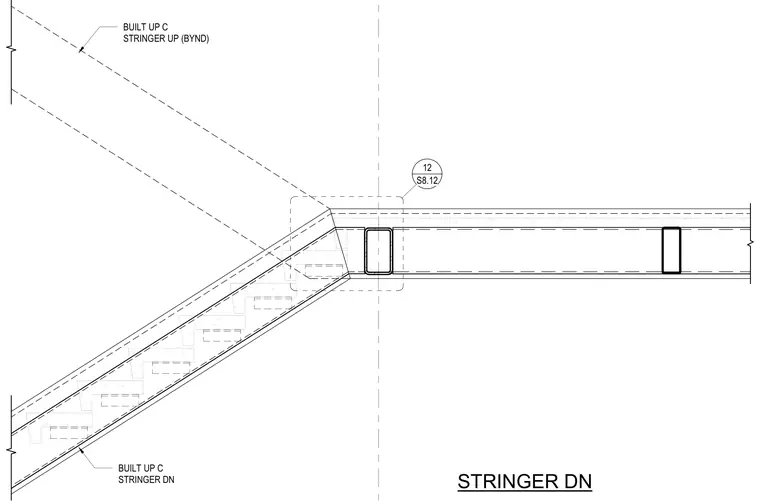

An exterior stair stringer connection details the interface between a built-up channel stringer going down and a built-up channel stringer going up beyond the floor level. The assembly ties into the structural framing grid with reference to detail 12 on sheet S8.12.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
