A steel girt connects to a hollow structural section column through a welded shear plate and three seven-eighths-inch erection bolts. The continuity plates are sized to match the beam flange thickness plus one-eighth of an inch and are welded to the column using a complete joint penetration weld typically. The top and bottom flanges of the girt receive a three-eighths-inch partial joint penetration weld to the continuous plate assembly. A one-quarter-inch fillet weld is applied to three sides of the shear plate connection.

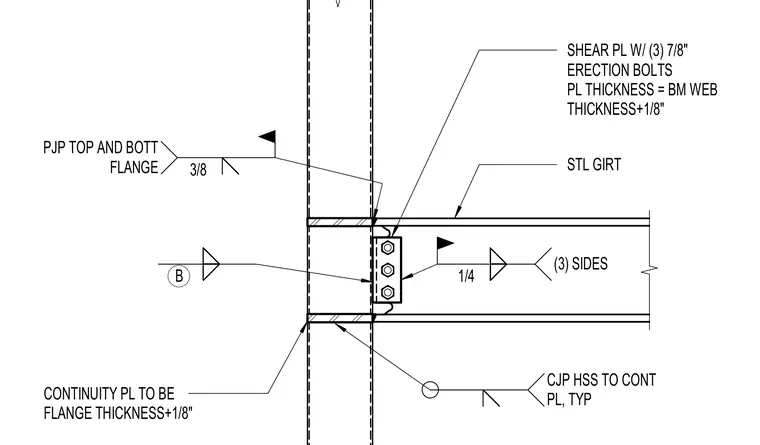

STL GIRT 3/8 PJP TOP AND BOTT FLANGE CJP HSS TO CONT PL, TYP CONTINUITY PL TO BE FLANGE THICKNESS+1/8" SHEAR PL W/ (3) 7/8" ERECTION BOLTS PL THICKNESS = BM WEB THICKNESS+1/8" B 1/4 (3) SIDES
