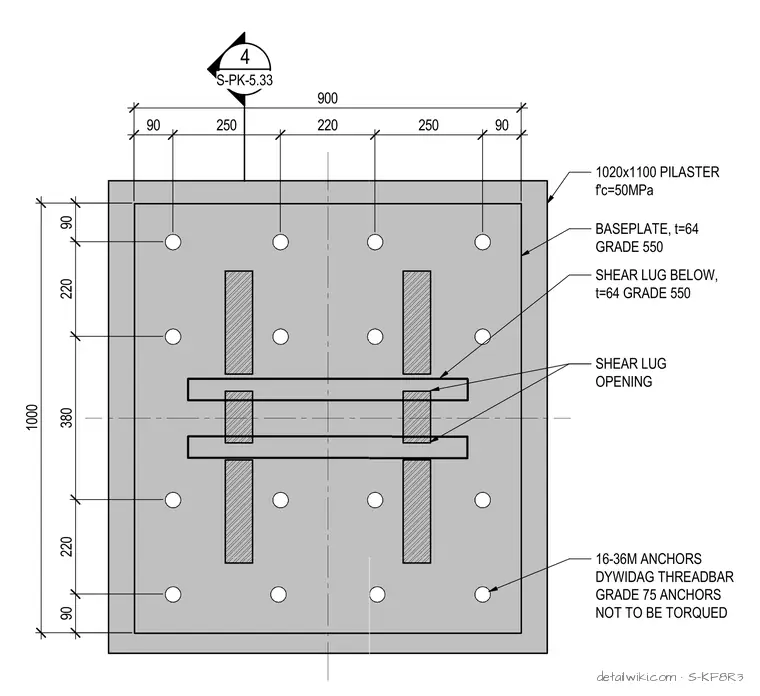

The plan detail illustrates a 1020x1100 mm concrete pilaster with a compressive strength of f'c=50MPa, supporting a baseplate of thickness t=64 mm made of Grade 550 steel. The assembly incorporates 16 number 36M Dywidag threadbar anchors of Grade 75 that are specified as not to be torqued, along with shear lugs (t=64 Grade 550) situated in shear lug openings to transfer lateral loads into the concrete foundation.
Text on the drawing
900 90 250 220 250 90 1000 90 220 380 220 90 16-36M ANCHORS DYWIDAG THREADBAR GRADE 75 ANCHORS NOT TO BE TORQUED SHEAR LUG OPENING SHEAR LUG BELOW, t=64 GRADE 550 BASEPLATE, t=64 GRADE 550 1020x1100 PILASTER f'c=50MPa 4 S-PK-5.33
