Gusset Pin Hole and Repad Typical Detail

Materials

Steel

Elements

Connections / Plates

Connections

Gusset Plate

About this detail

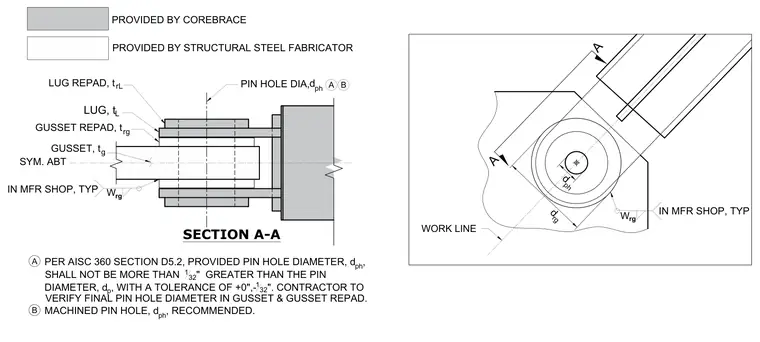

A pinned gusset connection incorporating a main gusset plate with thickness t_g, gusset repad plates with thickness t_r_g, lug plates with thickness t_l, and lug repad plates with thickness t_r_l. The assembly is symmetrical about the centerline and includes welded connections performed in the manufacturer shop. The pin hole diameter d_ph is detailed in accordance with AISC 360 Section D5.2, requiring the hole diameter to be no more than one thirty-second inch greater than the pin diameter with a tolerance of plus zero and minus one thirty-second inch. A machined pin hole is recommended, and the contractor must verify the final pin hole diameter in both the gusset and gusset repad. Components are designated by source, with specific plates provided by CoreBrace and the structural steel fabricator.
