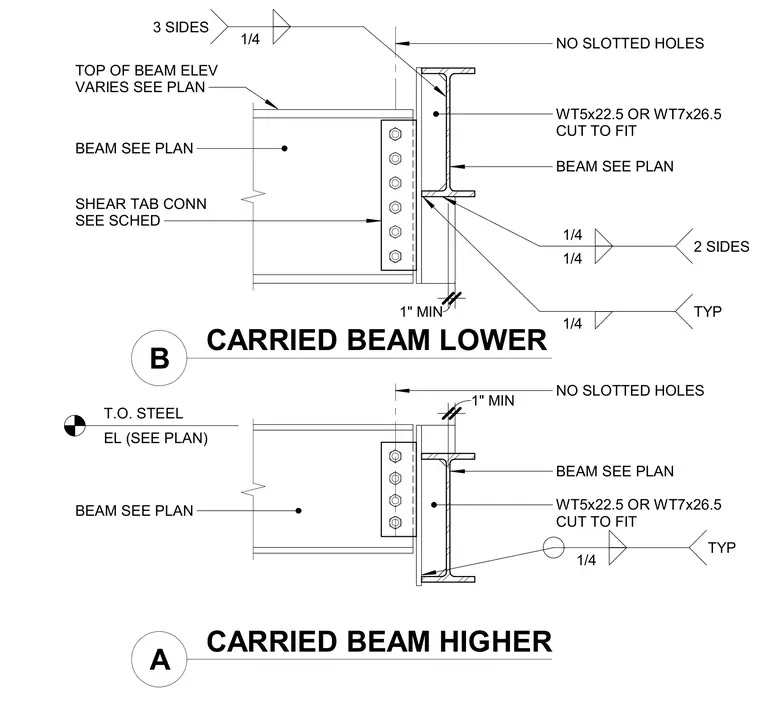

A beam framing connection where a carried beam connects to a supporting beam via a shear tab. The connection utilizes a WT5x22.5 or WT7x26.5 structural tee cut to fit, welded to the supporting beam flange with a one-quarter-inch fillet weld on two sides typical. The carried beam web fastens to the shear tab using standard unslotted bolt holes with a one-inch minimum clearance. Top of beam elevations vary as specified per plan, and structural steel elevations are coordinated accordingly.
TOP OF BEAM ELEV VARIES SEE PLAN NO SLOTTED HOLES SHEAR TAB CONN SEE SCHED WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 1/4 3 SIDES 1/4 TYP 1/4 1/4 2 SIDES 1/4 TYP CARRIED BEAM HIGHER A CARRIED BEAM LOWER B NO SLOTTED HOLES EL (SEE PLAN) T.O. STEEL 1" MIN 1" MIN
