Structural · S-KETY6

Typical Truss Chord Web Doubler Plate

Materials

Steel

Elements

Trusses Connections / Plates

Connections

Gusset Plate Welded Connection Bolted Connection

About this detail

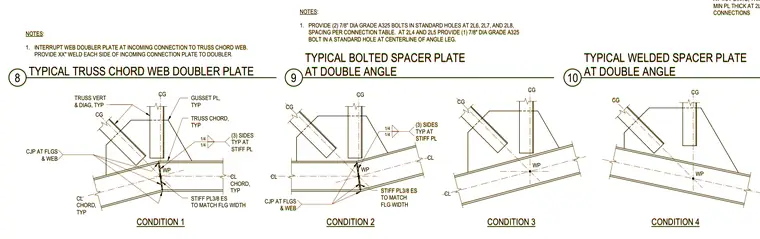

Typical truss chord web doubler plate configurations across four conditions for structural steel trusses comprise typical truss chords, vertical and diagonal members, and gusset plates connected with complete joint penetration welds at the flanges and web. Stiffener plates measuring 3/8 inch on each side to match the flange width are welded with quarter-inch fillet welds on three sides typical at stiffener plates. Additional notes specify interrupting the web doubler plate at incoming connections to the truss chord web with a specified weld on each side of the incoming connection plate. Spacer plate conditions feature two 7/8 inch diameter grade A325 bolts in standard holes at specified locations with spacing per connection table, or single bolts at the centerline of angle legs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
