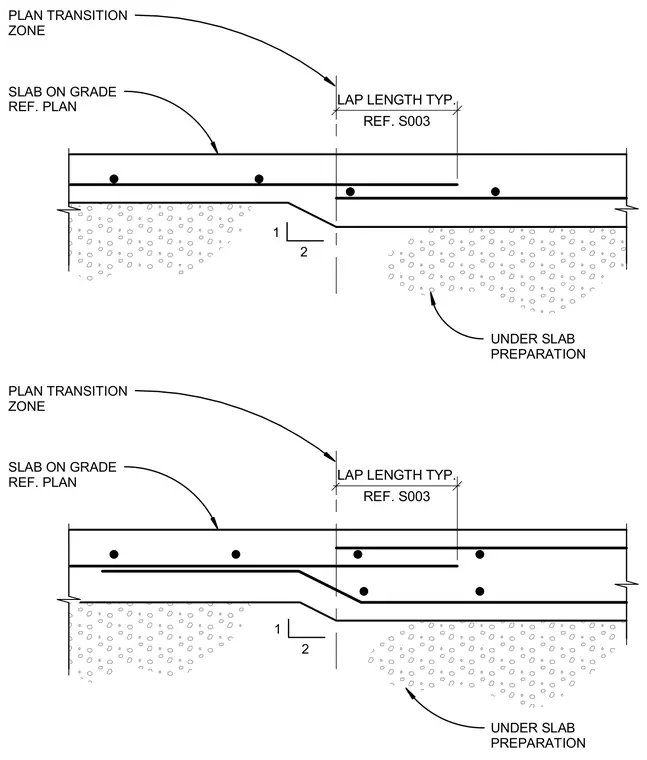

A structural transition zone accommodates a thickness change in the slab on grade. Reinforcing bars lap across the transition zone per sheet S003 requirements within the concrete slab. Standard under slab preparation occurs beneath the varying slab depths.
1 2 REF. S003 LAP LENGTH TYP. PLAN TRANSITION ZONE SLAB ON GRADE REF. PLAN 1 2 REF. S003 LAP LENGTH TYP. PLAN TRANSITION ZONE SLAB ON GRADE REF. PLAN UNDER SLAB PREPARATION UNDER SLAB PREPARATION
