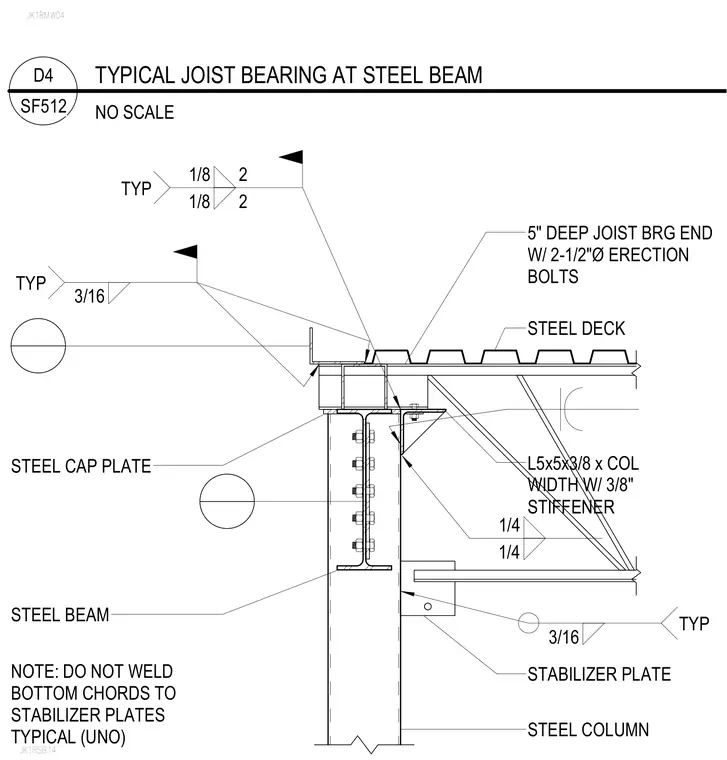

An open-web joist bearing connection occurs at a wide-flange steel beam supported by a steel column. The five-inch deep joist bearing end connects with two one-half inch diameter erection bolts and a top weld assembly, carrying a profiled steel deck above. A custom angle section, specified as L5x5x3/8 matching the column width with a three-eighths inch stiffener plate, welds to the steel beam with quarter-inch fillet welds. A steel cap plate finishes the column top, while a stabilizer plate attaches to the column web with three-sixteenths inch welds. Per the drawing notes, bottom chords remain left unwelded to the stabilizer plates unless noted otherwise.
JK1RMW04 JK1RSB14 STEEL CAP PLATE STEEL COLUMN STABILIZER PLATE STEEL DECK 5" DEEP JOIST BRG END W/ 2-1/2"Ø ERECTION BOLTS NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 1/8 2 1/8 2 TYP 3/16 TYP 3/16 TYP STEEL BEAM L5x5x3/8 x COL WIDTH W/ 3/8" STIFFENER 1/4 1/4 NO SCALE SF512 D4 TYPICAL JOIST BEARING AT STEEL BEAM
