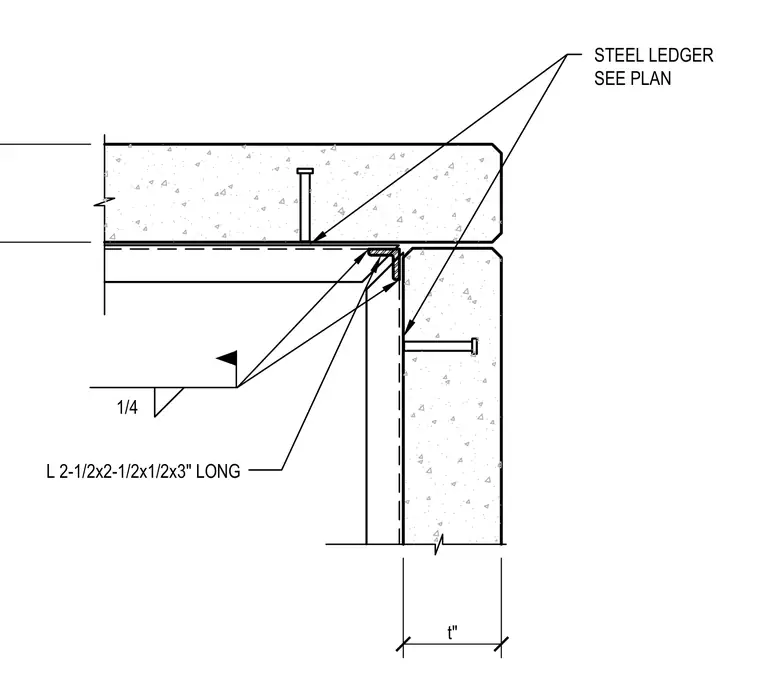

Precast concrete panels meet at a corner joint supported by a steel ledger angle sized two and a half inches by two and a half inches by one-half inch and three inches long. The angle is connected with a quarter-inch fillet weld as indicated by the weld symbol. Cast-in anchors secure the precast concrete panels, with the steel ledger sized per plan.
