Steel beams frame into a column sized per plan using a 1-1/4 inch thick steel plate with a yield strength of 50 KSI, secured with eight 3/4-inch diameter A307 erection bolts. Shear plates measuring 3/4 inches by 14 inches by 1 foot 2 inches connect the steel beams to the column, fastened with four 3/4-inch diameter machine bolts per side. Welds include a 5/16-inch fillet weld and a 3/8-inch weld applied to three sides typically. A 6x nailer is attached above per framing requirements.

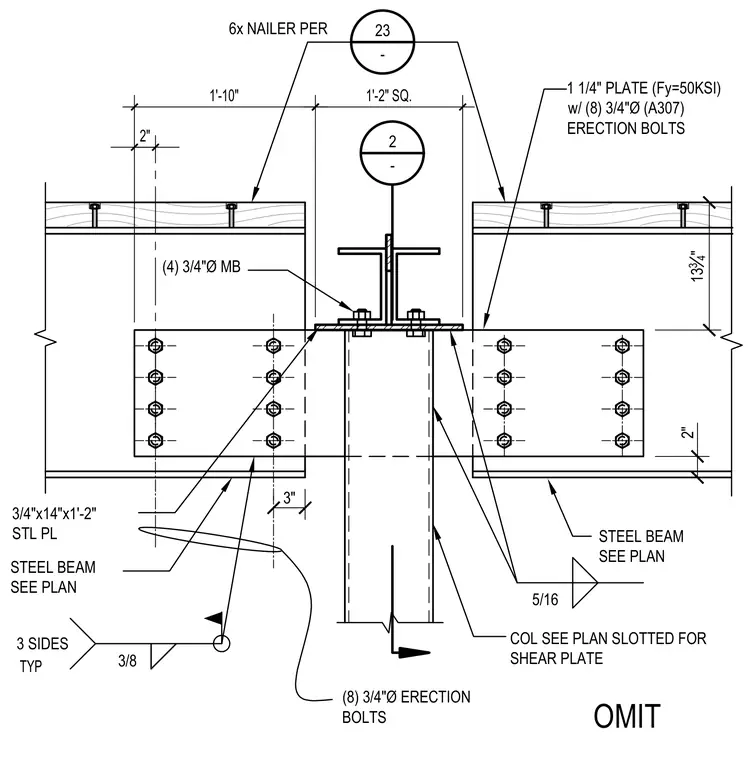

3/4"x14"x1'-2" STL PL (4) 3/4"Ø MB 2" 1'-10" 1'-2" SQ. 1 1/4" PLATE (Fy=50KSI) w/ (8) 3/4"Ø (A307) ERECTION BOLTS COL SEE PLAN SLOTTED FOR SHEAR PLATE 13 3 4 " 2" 2 - 5/16 3/8 3 SIDES TYP 6x NAILER PER 23 - 3" (8) 3/4"Ø ERECTION BOLTS STEEL BEAM SEE PLAN STEEL BEAM SEE PLAN OMIT
