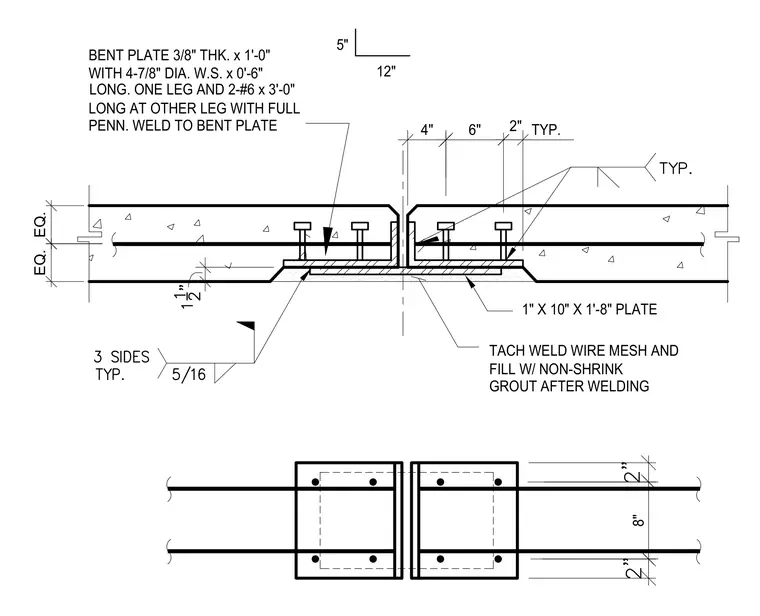

Precast concrete panels connect across a vertical joint using embedded steel plates secured by four seven-eighths inch diameter welded studs and two number six reinforcing bars measuring three feet long on each leg. A bridging plate measuring one inch by ten inches by one foot eight inches spans across the joint and receives a five-sixteenths inch fillet weld on three sides typically. Non-shrink grout fills the recess after welding is complete, with wire mesh tack welded in place.
EQ. LONG. ONE LEG AND 2-#6 x 3'-0" WITH 4-7/8" DIA. W.S. x 0'-6" BENT PLATE 3/8" THK. x 1'-0" PENN. WELD TO BENT PLATE LONG AT OTHER LEG WITH FULL EQ. 5" 12" 8" 1" X 10" X 1'-8" PLATE GROUT AFTER WELDING FILL W/ NON-SHRINK TYP. 4" 6" 2" TACH WELD WIRE MESH AND
