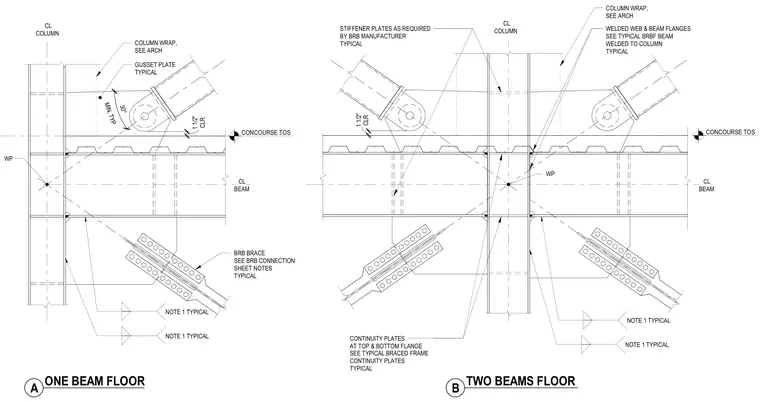

Buckling-restrained braced frame connections feature a gusset plate attached to the steel beam and column with a one-and-a-half-inch clearance. Continuity plates are welded to the column at the top and bottom flanges, and stiffener plates are provided as required by the buckling-restrained brace manufacturer. The beam web and flanges are welded to the column flange, aligning with the work point of the brace. An architectural column wrap surrounds the structural column assembly at the concourse level top of steel.
NOTE 1 TYPICAL NOTE 1 TYPICAL CL BEAM CL COLUMN WP BRB BRACE SEE BRB CONNECTION SHEET NOTES TYPICAL A ONE BEAM FLOOR NOTE 1 TYPICAL NOTE 1 TYPICAL CL COLUMN CL BEAM CONTINUITY PLATES AT TOP & BOTTOM FLANGE SEE TYPICAL BRACED FRAME CONTINUITY PLATES TYPICAL STIFFENER PLATES AS REQUIRED BY BRB MANUFACTURER TYPICAL WELDED WEB & BEAM FLANGES SEE TYPICAL BRBF BEAM WELDED TO COLUMN TYPICAL WP B TWO BEAMS FLOOR GUSSET PLATE TYPICAL CONCOURSE TOS CONCOURSE TOS COLUMN WRAP, SEE ARCH CLR 1 1/2" CLR 1 1/2" COLUMN WRAP, SEE ARCH MIN, TYP 30°
