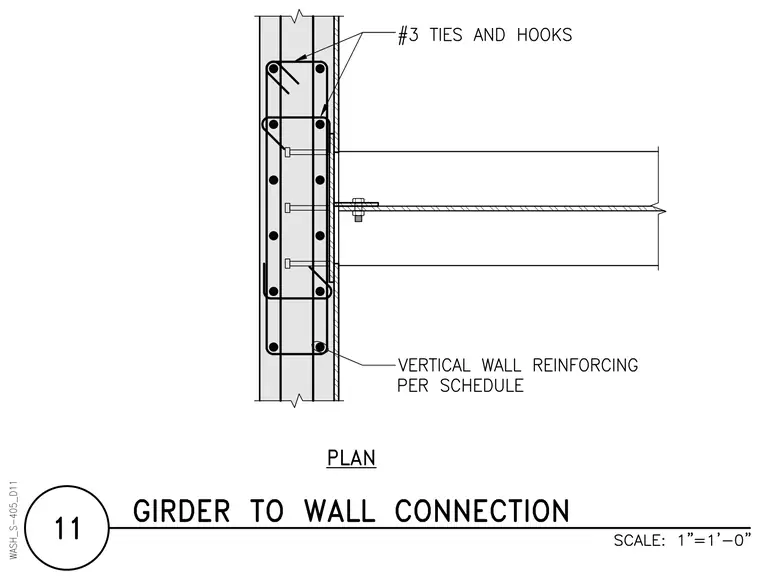

A structural steel girder connects directly to a reinforced concrete wall using embedded connection plates and fasteners. The concrete wall is detailed with vertical wall reinforcing per schedule and number 3 ties with standard hooks. The framing member attaches securely to the embedded steel assembly within the concrete wall.
