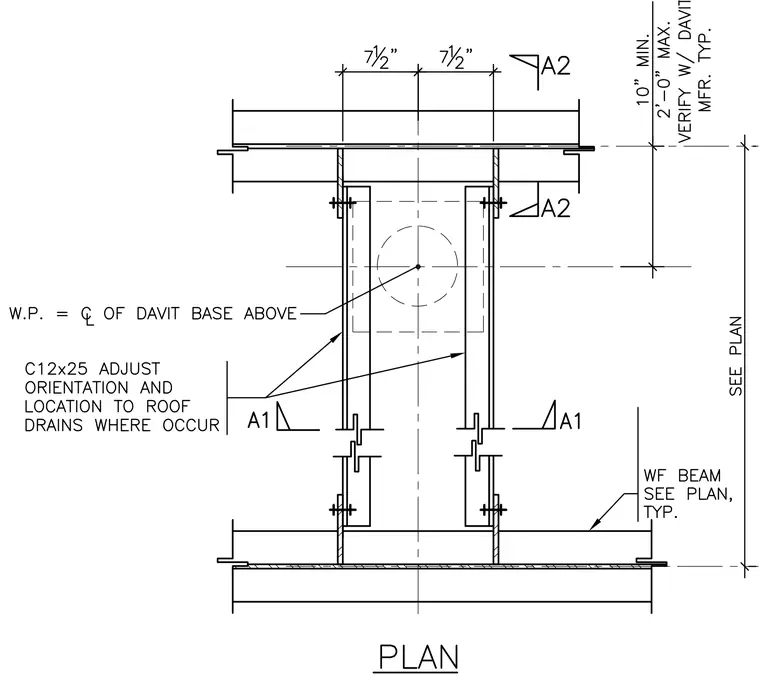

C12x25 structural steel channels are positioned with orientation and location adjusted to coordinate with roof drains where they occur. Wide flange beams, sized per plan, frame into the assembly. The working point is established at the centerline of the davit base above, maintaining a dimension between 10 inches minimum and 2 feet 0 inches maximum, verified with the davit manufacturer typical.
