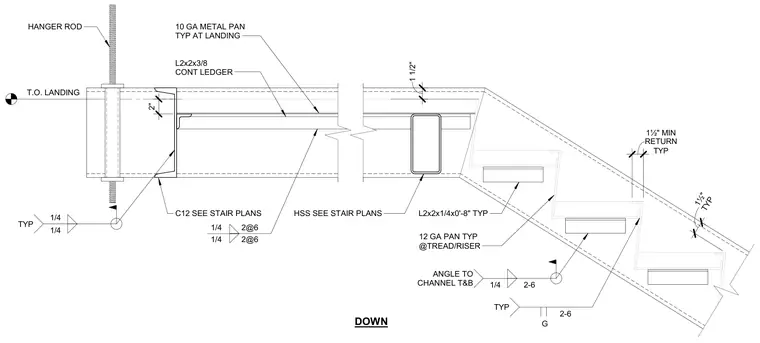

A C12 structural channel frames the stair landing, supported from above by a threaded hanger rod with top-of-landing elevation control. A continuous L2x2x3/8 angle ledger welded to the channel supports a 10-gauge metal pan landing. An intermediate hollow structural section member and L2x2x1/4 angles support 12-gauge metal pans at the treads and risers. Fillet welds of one-quarter inch size secure the connection angles to the channel top and bottom.
2" 1 1/2" C12 SEE STAIR PLANS L2x2x3/8 CONT LEDGER 10 GA METAL PAN TYP AT LANDING 12 GA PAN TYP @TREAD/RISER L2x2x1/4x0'-8" TYP HSS SEE STAIR PLANS 1/4 1/4 TYP 1/4 2-6 ANGLE TO CHANNEL T&B 2-6 TYP G DOWN HANGER ROD T.O. LANDING TYP 1½" TYP 1½" MIN RETURN 2@6 1/4 2@6 1/4
