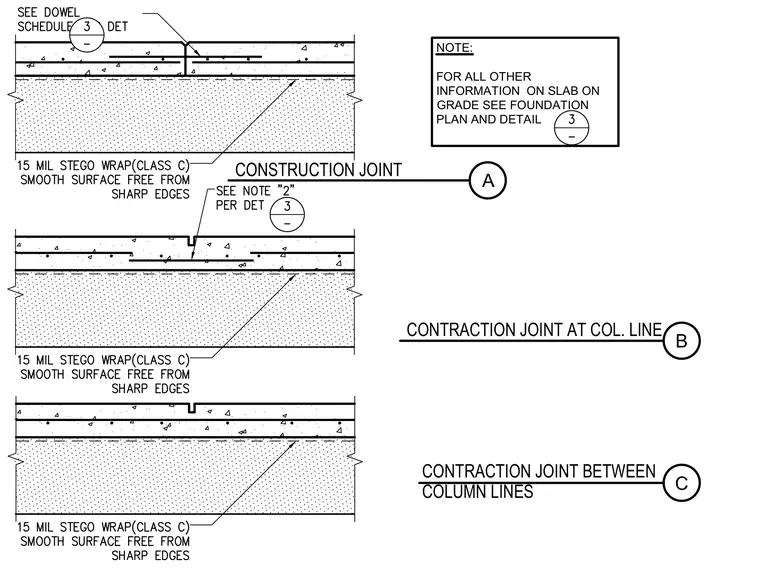

A concrete slab on grade rests on a fifteen mil Stego Wrap Class C vapor retarder with a smooth surface free from sharp edges. The assembly details three distinct joint conditions including a construction joint, a contraction joint at a column line, and a contraction joint between column lines. Dowel placement and joint profiles are referenced to specific schedule details. Additional information for the slab on grade refers to the foundation plan and details.
CONTRACTION JOINT AT COL. LINE B A C CONTRACTION JOINT BETWEEN COLUMN LINES CONSTRUCTION JOINT NOTE: FOR ALL OTHER INFORMATION ON SLAB ON GRADE SEE FOUNDATION PLAN AND DETAIL
