A concrete ramp slab connects to a seven-inch concrete wall panel sized per plan. The connection relies on number four reinforcing bars, three feet long, spaced at twenty-four inches on center and embedded into the wall panel using Hilti HIT-RE 500-V3 epoxy or equal, with special inspection required.

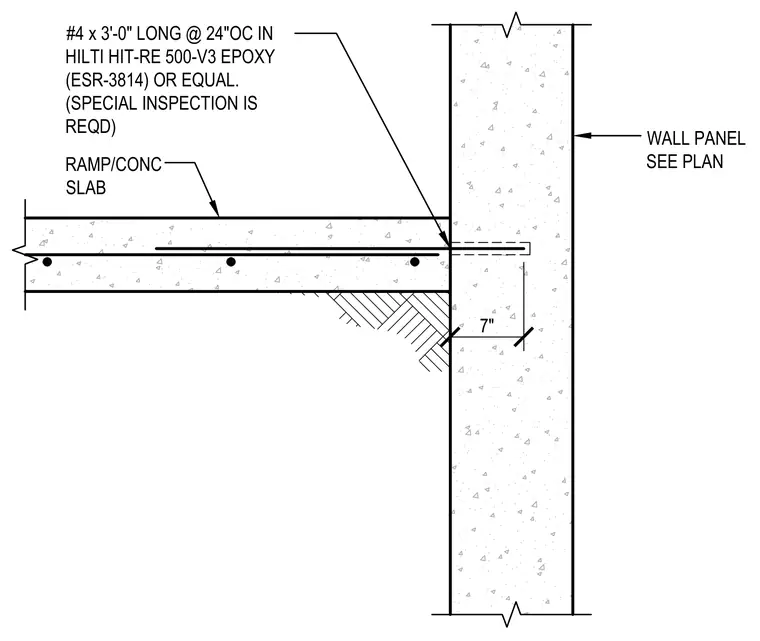

7" WALL PANEL SEE PLAN RAMP/CONC SLAB #4 x 3'-0" LONG @ 24"OC IN HILTI HIT-RE 500-V3 EPOXY (ESR-3814) OR EQUAL. (SPECIAL INSPECTION IS REQD)
