Structural · S-KCXGA

Braced Frame Baseplate Detail

Materials

Elements

Floors / Slabs Bracing Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Rebar Splice / Development

About this detail

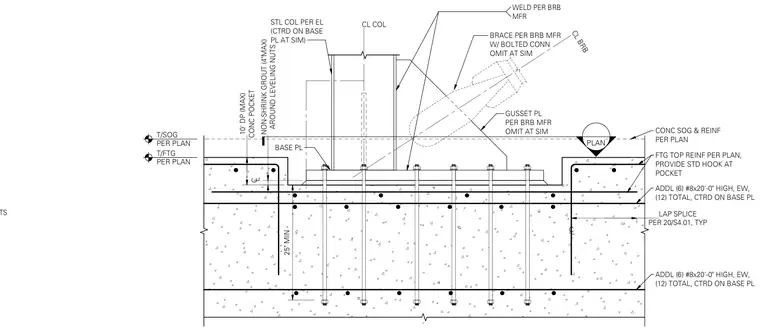

A steel column baseplate and buckling-restrained brace connection anchor into a concrete footing. The steel column and gusset plate sit on a baseplate equipped with leveling nuts and washers, anchored via anchor rods extending into the foundation. A non-shrink grout layer up to four inches thick fills the space beneath the baseplate, resting within a concrete pocket up to ten inches deep. Additional reinforcing bars, including six number eight bars twenty feet long in each way, are centered on the baseplate with standard hooks at the pocket per plan. The footing includes top and bottom reinforcement with lap splices per plan, supporting the adjacent slab on grade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
