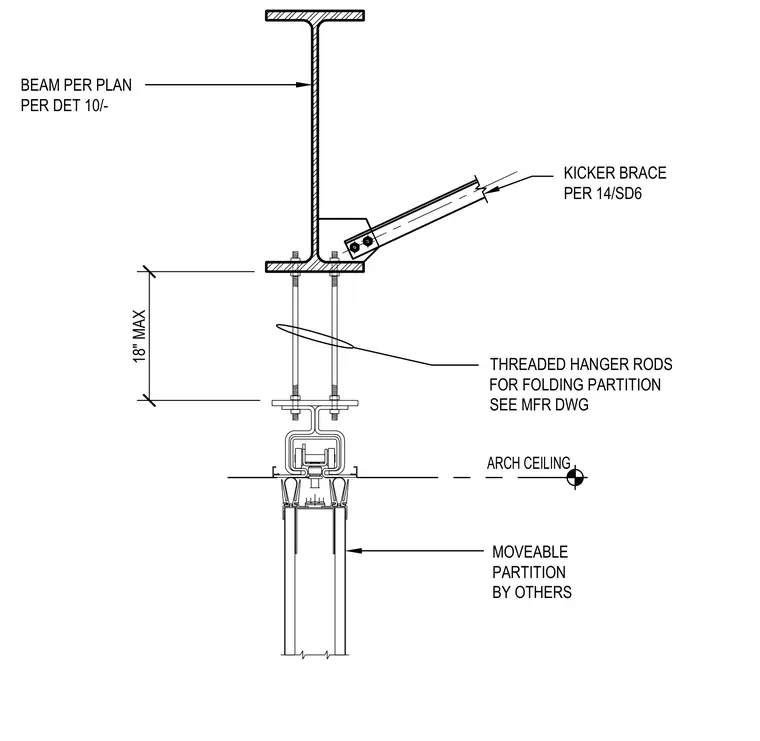

A structural steel beam per plan carries a movable partition suspended below by threaded hanger rods for a folding partition sized per manufacturer drawings with a maximum length of eighteen inches. A kicker brace connects to the bottom flange of the beam per detail fourteen on sheet SD6 to provide lateral stability. The movable partition assembly is installed by others and intersects an architectural ceiling.
BEAM PER PLAN PER DET 10/- MOVEABLE PARTITION BY OTHERS THREADED HANGER RODS FOR FOLDING PARTITION SEE MFR DWG 18" MAX KICKER BRACE PER 14/SD6 ARCH CEILING
