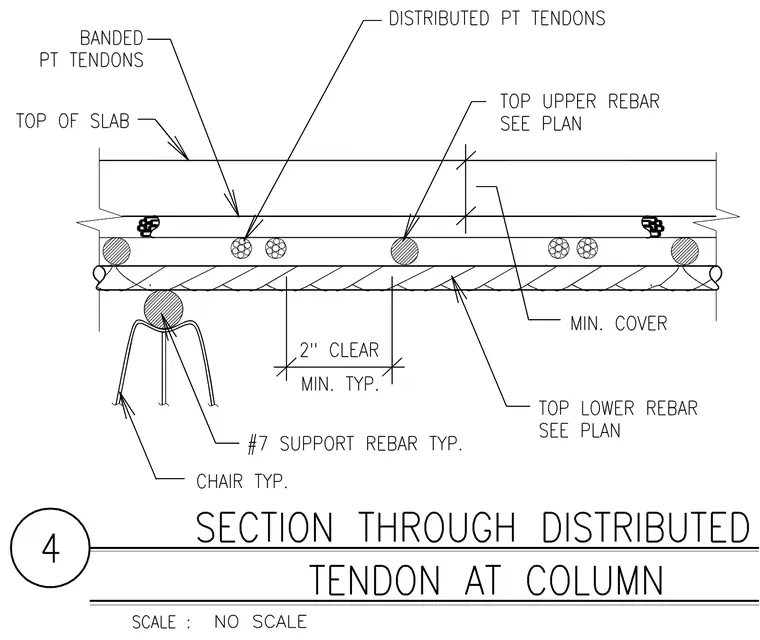

This structural detail shows a cross-section of a post-tensioned concrete slab at a column location, detailing the arrangement of banded and distributed post-tensioned tendons relative to top upper and top lower rebar. The distributed PT tendons and rebar are maintained at a minimum cover from the top of the slab, with a specified minimum two-inch clear spacing. A number seven support rebar rests on a typical wire chair to support the assembly within the concrete slab profile.
