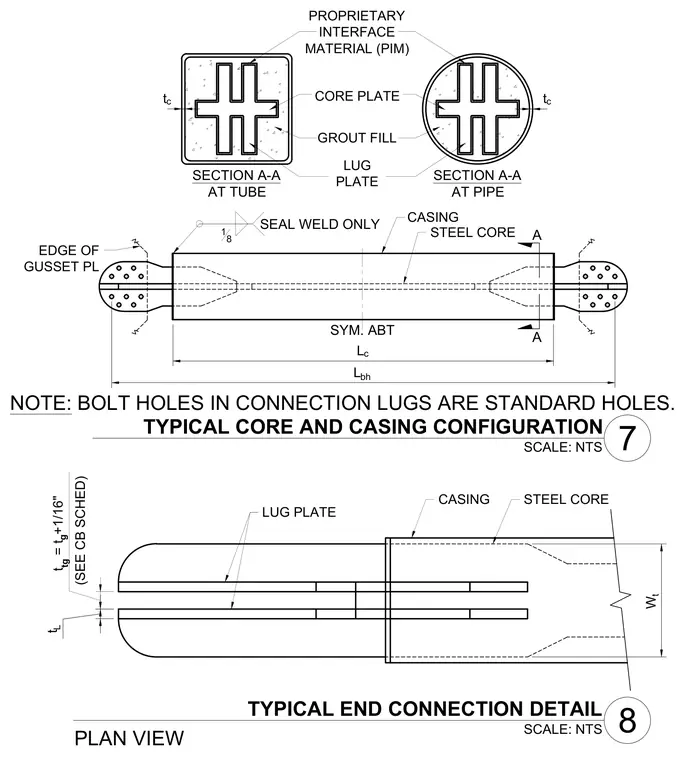

The assembly consists of a steel core housed within a tubular or pipe casing, surrounded by grout fill and a proprietary interface material. A cruciform core plate extends through the interior, terminating at lug plates with standard bolt holes at each end for connection. A one-eighth inch seal weld is specified at the casing end. Gusset plates connect to the lug plates, with dimensions governed by the structural schedule.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE EDGE OF GUSSET PL SEAL WELD ONLY 18 L c L bh SYM. ABT STEEL CORE CASING A A 7 TYPICAL CORE AND CASING CONFIGURATION SCALE: NTS W t t L t tg = t g +1/16" (SEE CB SCHED) STEEL CORE CASING LUG PLATE PLAN VIEW 8 TYPICAL END CONNECTION DETAIL SCALE: NTS NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
