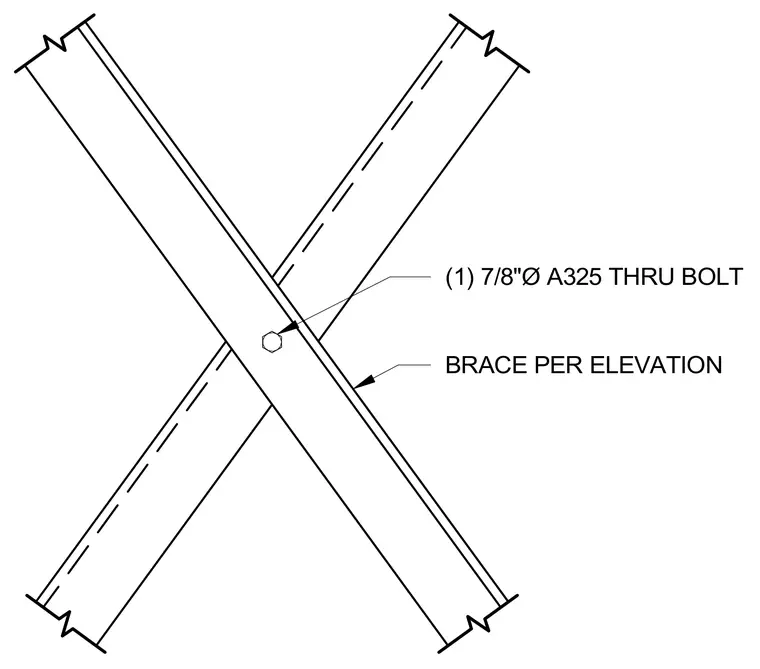

Two crossing structural braces connect at their intersection point using one seven-eighths-inch-diameter ASTM A325 through bolt. The brace members are sized per the elevation drawings.
