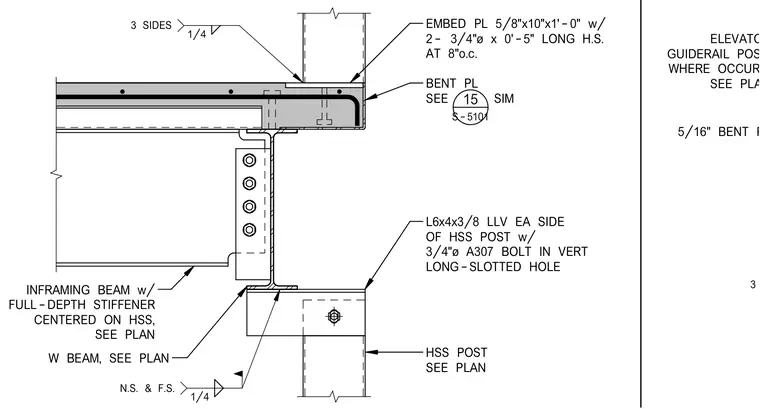

An inframing wide-flange beam utilizes a full-depth stiffener plate centered on a hollow structural section post, welded with a quarter-inch fillet weld on both the near side and far side. A bent plate measuring five-eighths of an inch by ten inches by one foot zero inches is anchored with two three-quarter-inch diameter by five-inch long studs at eight inches on center. Angle sections measuring six by four by three-eighths of an inch are positioned on each side of the hollow structural section post and secured with three-quarter-inch diameter ASTM A307 bolts in vertical long-slotted holes. A five-sixteenths-inch bent plate is detailed on three sides where the elevator guiderail post occurs.
EMBED PL 5/8"x10"x1'-0" w/ 2- 3/4"ø x 0'-5" LONG H.S. AT 8"o.c. BENT PL SEE SIM W BEAM, SEE PLAN L6x4x3/8 LLV EA SIDE OF HSS POST w/ 3/4"ø A307 BOLT IN VERT LONG-SLOTTED HOLE HSS POST SEE PLAN 3 SIDES 1/4 N.S. & F.S. 1/4 S-5101 15 INFRAMING BEAM w/ FULL-DEPTH STIFFENER CENTERED ON HSS, SEE PLAN ELEVATOR GUIDERAIL POST, WHERE OCCURS, SEE PLAN 5/16" BENT PL 3 SIDES, TYP
