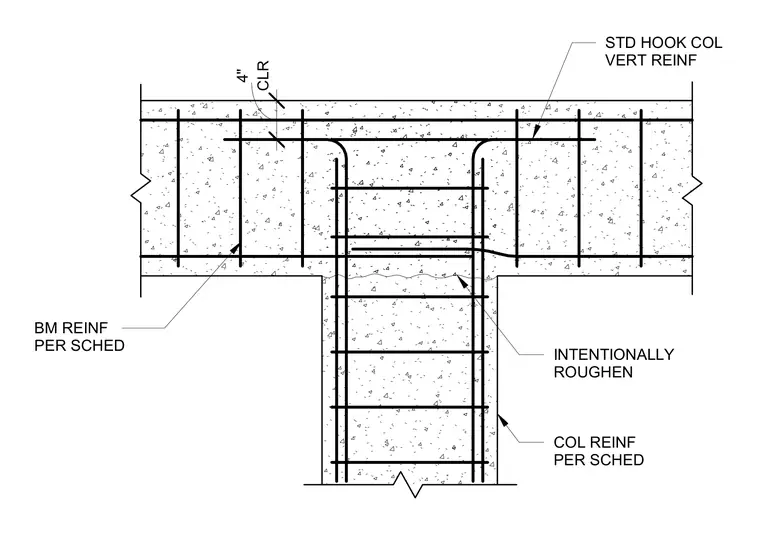

The concrete column vertical reinforcement extends through the joint with standard hooks terminating into the beam reinforcement per schedule. Beam reinforcement continues through the intersection with specified four-inch clear cover. The construction joint interface between the column and beam is intentionally roughened for shear transfer. Column ties and beam stirrups provide confinement throughout the joint assembly.
INTENTIONALLY ROUGHEN BM REINF PER SCHED COL REINF PER SCHED STD HOOK COL VERT REINF CLR 4"
