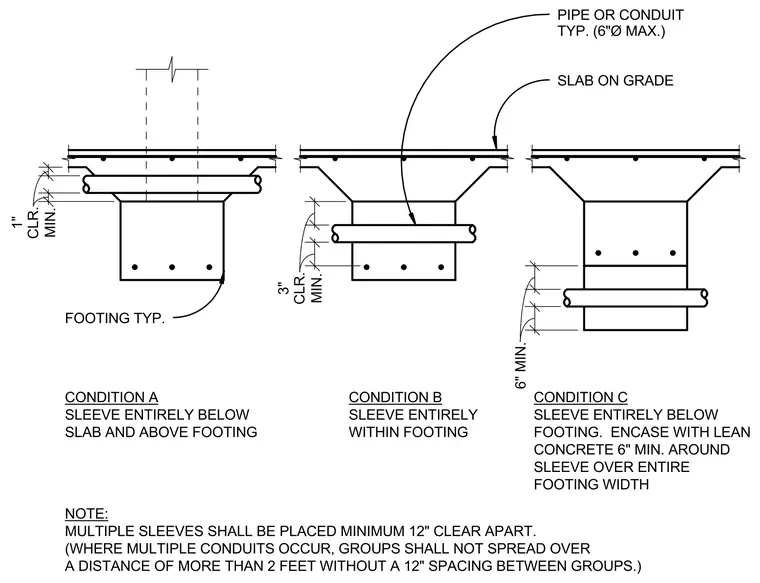

Three conditions for routing pipes or conduits with a maximum diameter of six inches through slab-on-grade and footing assemblies. Condition A positions the sleeve entirely below the slab and above the footing with a minimum one-inch clearance. Condition B places the sleeve entirely within the footing maintaining a minimum three-inch clearance. Condition C locates the sleeve entirely below the footing, requiring a minimum six-inch lean concrete encasement around the sleeve over the entire footing width. Multiple sleeves require a minimum twelve-inch clear spacing, and conduit groups spanning more than two feet must incorporate a twelve-inch spacing between groups.
NOTE: MULTIPLE SLEEVES SHALL BE PLACED MINIMUM 12" CLEAR APART. (WHERE MULTIPLE CONDUITS OCCUR, GROUPS SHALL NOT SPREAD OVER A DISTANCE OF MORE THAN 2 FEET WITHOUT A 12" SPACING BETWEEN GROUPS.) CONDITION A SLEEVE ENTIRELY BELOW SLAB AND ABOVE FOOTING CONDITION B SLEEVE ENTIRELY WITHIN FOOTING CONDITION C SLEEVE ENTIRELY BELOW FOOTING. ENCASE WITH LEAN CONCRETE 6" MIN. AROUND SLEEVE OVER ENTIRE FOOTING WIDTH SLAB ON GRADE PIPE OR CONDUIT TYP. (6"Ø MAX.) FOOTING TYP. 6" MIN. 6" MIN. MIN. 3" CLR. MIN. 3" CLR. MIN. 1" CLR. MIN. 1" CLR.
