Electrical · S-KC3EP

Single Door Card Reader and Exit Device Elevation

Elements

About this detail

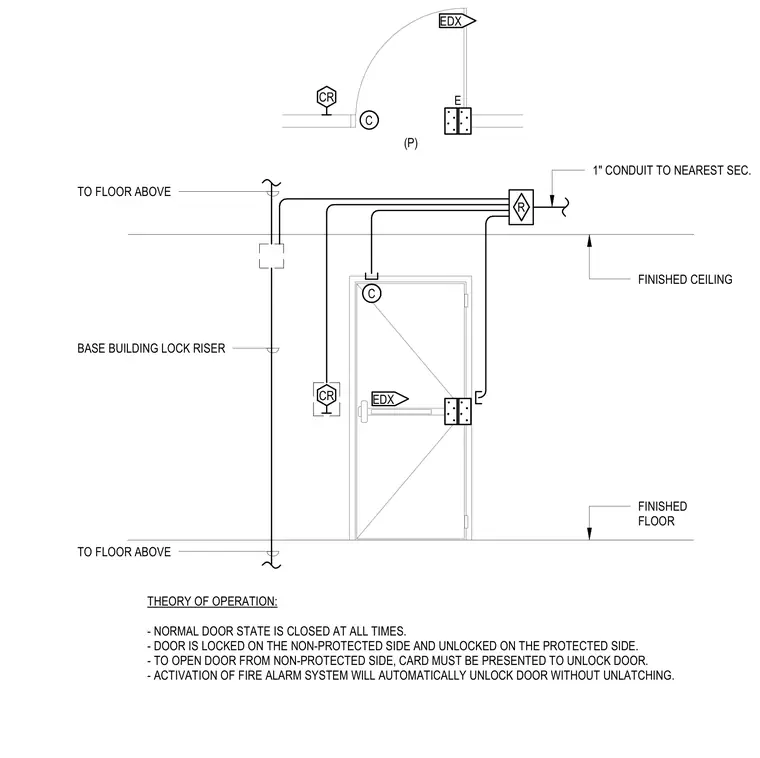

A single door access control installation includes a card reader, exit device, and conduit routing connected to the base building lock riser. The normal door state is closed at all times, locked on the non-protected side, and unlocked on the protected side. Presenting a card on the non-protected side unlocks the door, while activation of the fire alarm system automatically unlocks the door without unlatching. A one-inch conduit runs to the nearest security base building lock riser extending to the floor above.
