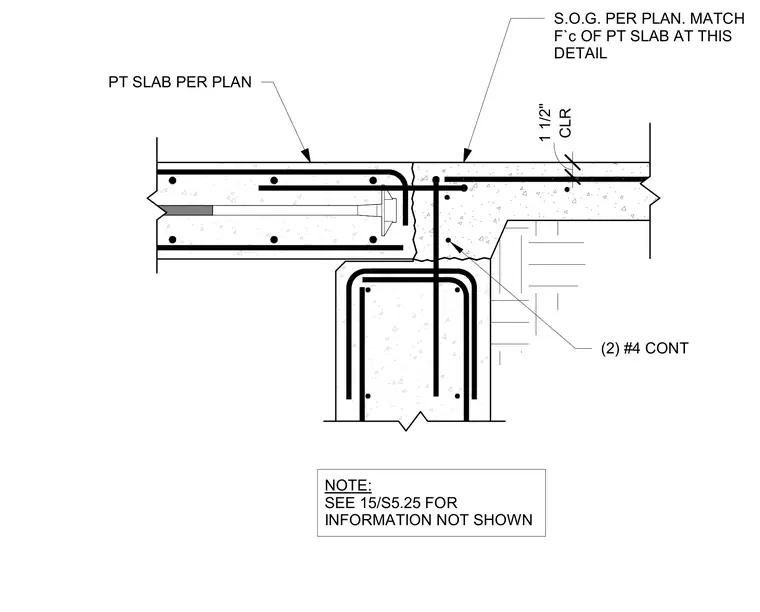

A post-tensioned concrete slab transitions to a slab on grade, matching the specified concrete compressive strength of the post-tensioned slab at this detail. Two continuous number four reinforcing bars tie the concrete elements together with one and one-half inches of concrete clear cover. Additional reinforcement and slab thicknesses are sized per plan.
PT SLAB PER PLAN S.O.G. PER PLAN. MATCH F`c OF PT SLAB AT THIS DETAIL CLR 1 1/2" NOTE: SEE 15/S5.25 FOR INFORMATION NOT SHOWN (2) #4 CONT
