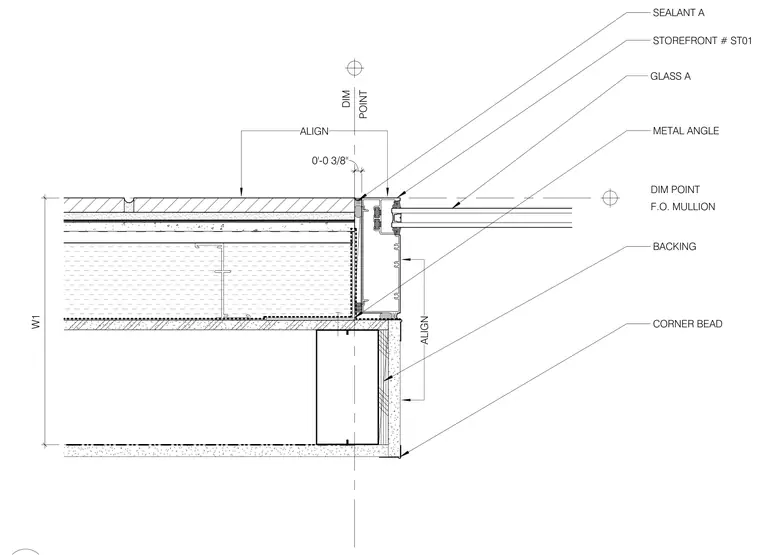

Storefront jamb assembly including Storefront # ST01 framing, Glass A glazing, and metal angle backer. Sealant A is applied at the exterior joint adjacent to the alignment dimension point. Interior wall construction incorporates backing and a corner bead at the finished edge.
ALIGN ALIGN DIM POINT F.O. MULLION DIM POINT W1 STOREFRONT # ST01 GLASS A SEALANT A METAL ANGLE BACKING CORNER BEAD 0'-0 3/8"
