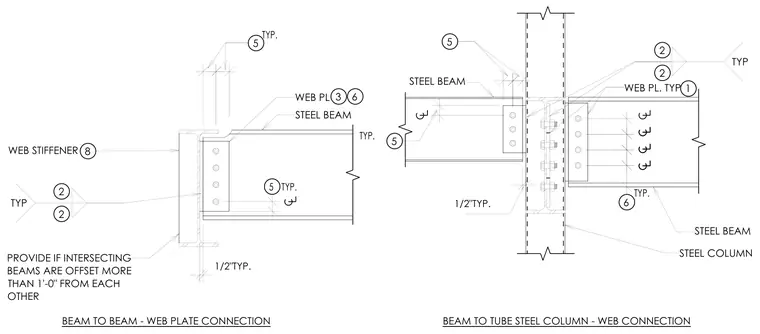

Steel framing connections are detailed for intersecting steel beams and tube columns using bolted web plates and welded web stiffeners. A beam-to-beam connection utilizes a web plate bolted to the supported beam web and welded to the supporting member flange, complete with a web stiffener plate required when intersecting beams are offset more than one foot from each other. A beam-to-tube steel column web connection utilizes opposing web plates bolted to the framing beam webs across the column profile.
BEAM TO BEAM - WEB PLATE CONNECTION 1/2"TYP. 5 TYP. WEB STIFFENER 8 5 TYP. WEB PL 3 6 STEEL BEAM 5 STEEL BEAM 2 2 1/2"TYP. STEEL COLUMN STEEL BEAM 6 TYP. WEB PL. TYP 1 5 TYP. BEAM TO TUBE STEEL COLUMN - WEB CONNECTION PROVIDE IF INTERSECTING BEAMS ARE OFFSET MORE THAN 1'-0" FROM EACH OTHER TYP 2 2 TYP
