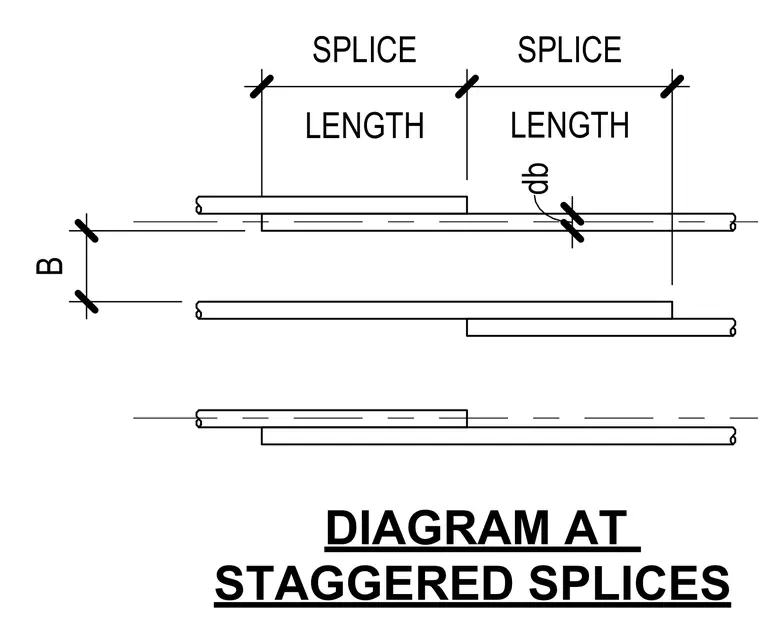

Staggered rebar lap splices in concrete construction have overlapping reinforcing bars spaced apart by dimension B, with each splice maintaining a designated splice length. A bar diameter indicator db is provided for clearance and spacing reference.
