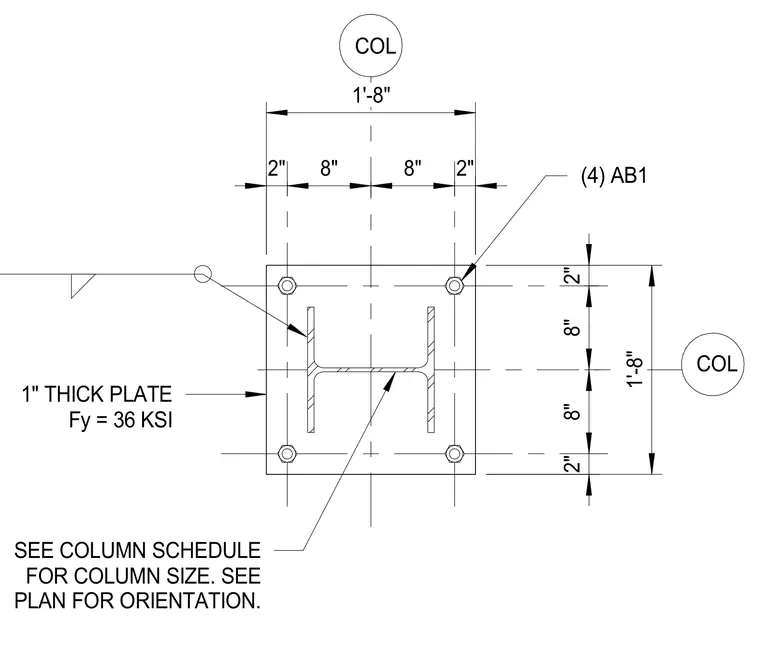

A structural steel column base plate measuring one foot eight inches square utilizes a one-inch thick plate with a yield strength of 36 ksi. The column is secured with four anchor bolts designated as AB1, spaced symmetrically at eight inches with two-inch edge distances. Column size is determined per the column schedule and orientation follows the structural plan.
SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1" THICK PLATE Fy = 36 KSI (4) AB1 COL COL 1'-8" 2" 8" 8" 2" 1'-8" 2" 8" 8" 2"
