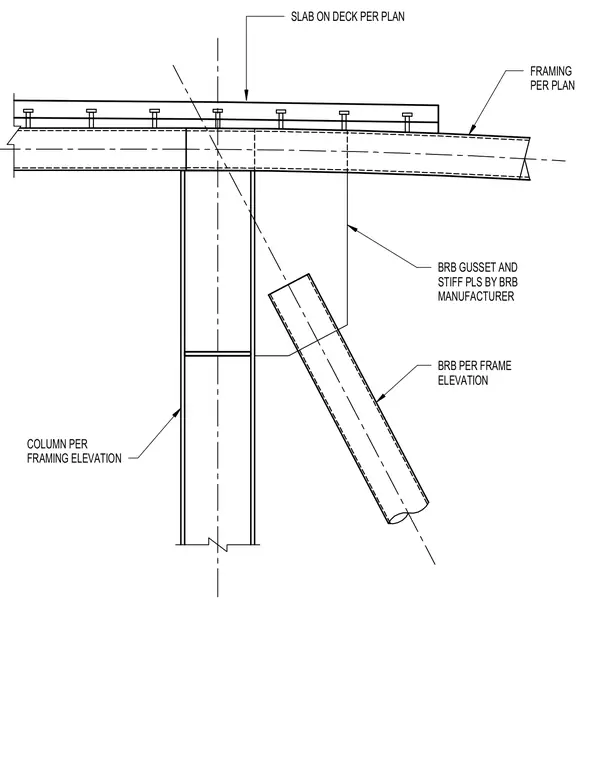

A buckling-restrained brace connects to a structural column and framing member below a slab on metal deck. The buckling-restrained brace is sized per the frame elevation. Gusset and stiffener plates are provided by the buckling-restrained brace manufacturer. The column and framing are sized per the framing elevation and plan, supporting the slab on deck above.
BRB PER FRAME ELEVATION BRB GUSSET AND STIFF PLS BY BRB MANUFACTURER FRAMING PER PLAN COLUMN PER FRAMING ELEVATION SLAB ON DECK PER PLAN
