Piping and conduit penetrations pass through a reinforced concrete slab or wall of thickness T. The maximum sleeve diameter D is limited to T divided by 3 or 2 inches, whichever is smaller. Sleeves must maintain a minimum clear spacing of three times the sleeve diameter or 4 inches minimum, whichever applies per notes. Where the required clear distance between sleeves cannot be achieved, the congested area must be treated as an opening requiring special reinforcing per structural slab opening details.

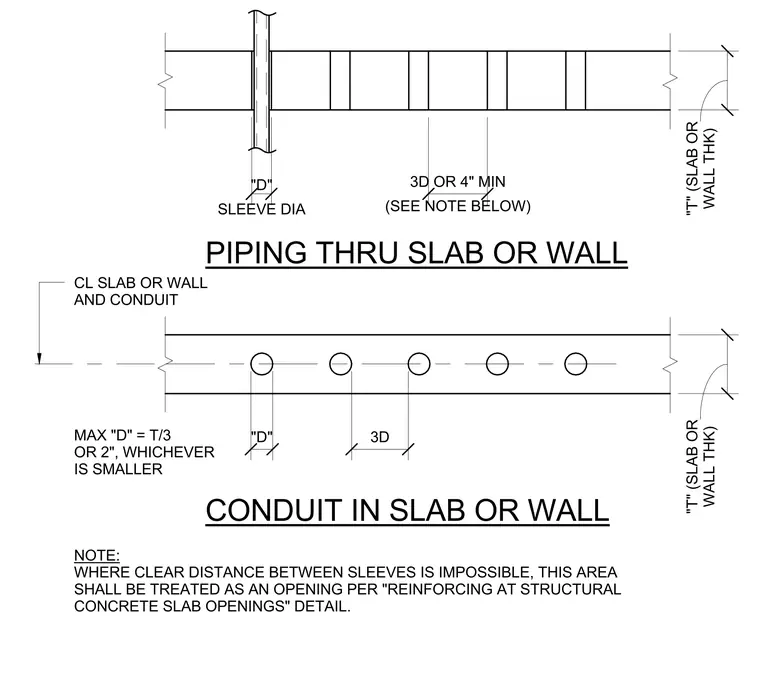

CONDUIT IN SLAB OR WALL NOTE: WHERE CLEAR DISTANCE BETWEEN SLEEVES IS IMPOSSIBLE, THIS AREA SHALL BE TREATED AS AN OPENING PER "REINFORCING AT STRUCTURAL CONCRETE SLAB OPENINGS" DETAIL. MAX "D" = T/3 OR 2", WHICHEVER IS SMALLER SLEEVE DIA "D" (SEE NOTE BELOW) 3D OR 4" MIN WALL THK) "T" (SLAB OR WALL THK) "T" (SLAB OR "D" 3D CL SLAB OR WALL AND CONDUIT PIPING THRU SLAB OR WALL
