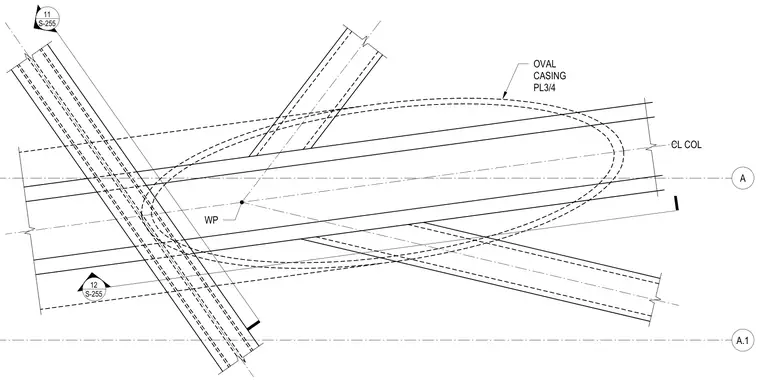

An oval casing plate with a thickness of three-quarters of an inch surrounds the structural column centerline at a designated working point. Intersecting structural framing members pass through the assembly, aligned with grid lines A and A.1. Detail references on the drawing link this intersection to sheets 11 and 12 on drawing S-255.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
