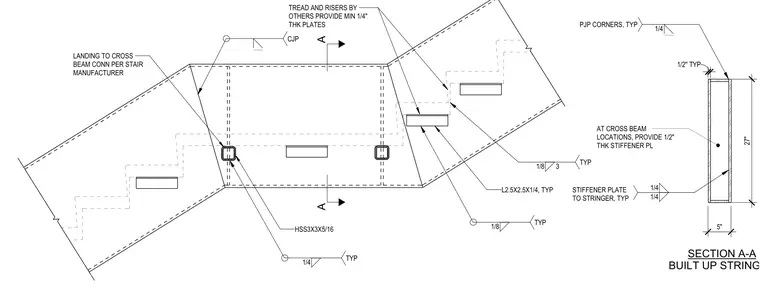

A structural stair landing-to-stringer connection features a built-up stringer measuring five by twenty-seven inches alongside treads and risers provided by others with a minimum quarter-inch thick plate. The landing connects to the cross beam per the stair manufacturer specifications utilizing an HSS 3x3x5/16 hollow structural section with quarter-inch complete joint penetration welds and partial joint penetration welds at the corners. At cross beam locations, a half-inch thick stiffener plate is welded to the stringer with quarter-inch fillet welds. Additional framing employs L2.5x2.5x1/4 angles typically at cross beam locations.
SECTION A-A BUILT UP STRINGER 5" 27" TREAD AND RISERS BY OTHERS PROVIDE MIN 1/4" THK PLATES LANDING TO CROSS BEAM CONN PER STAIR MANUFACTURER L2.5X2.5X1/4, TYP AT CROSS BEAM LOCATIONS, PROVIDE 1/2" THK STIFFENER PL 1/4 1/4 CJP HSS3X3X5/16 1/4 PJP CORNERS, TYP 1/8 TYP 1/8 3 TYP STIFFENER PLATE TO STRINGER, TYP 1/4 TYP A A 1/2'' TYP
