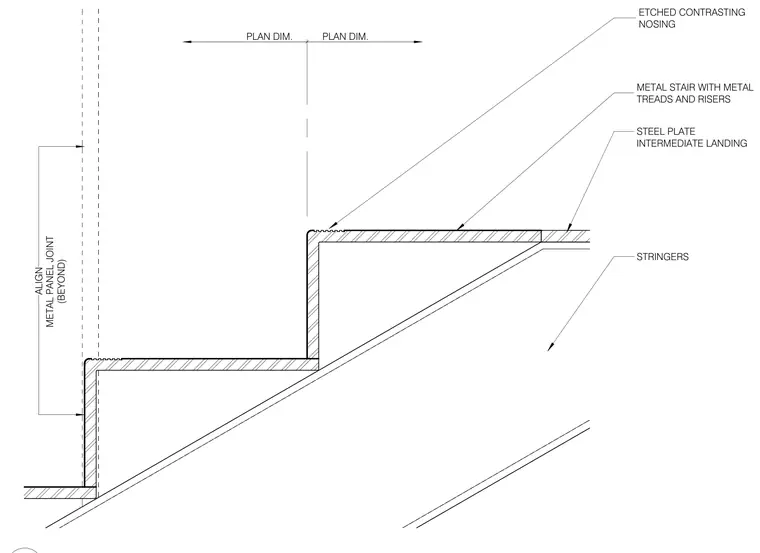

This metal stair assembly consists of steel plate stringers supporting metal treads and risers leading to a steel plate intermediate landing. Each tread features an etched contrasting nosing at the leading edge. Vertical alignment dimensions coordinate the stair with metal panel joints located beyond the assembly.
ALIGN PLAN DIM. PLAN DIM. STEEL PLATE STRINGERS METAL STAIR WITH METAL TREADS AND RISERS METAL PANEL JOINT (BEYOND) INTERMEDIATE LANDING ETCHED CONTRASTING NOSING
