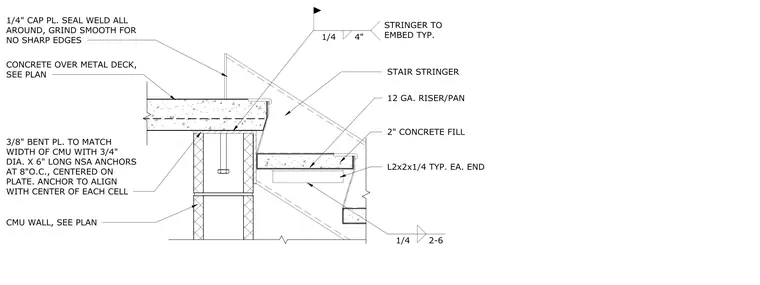

A three-eighths inch bent plate secures the stair stringer to the concrete masonry unit wall, anchored into the masonry cells with three-quarter inch diameter by six inch long non-shrink adhesive anchors spaced at eight inches on center. A four-inch fillet weld connects the stringer to the embed plate. A one-quarter inch cap plate is seal-welded all around the top of the stringer and ground smooth to eliminate sharp edges. The landing assembly features a concrete-filled metal deck supported by the stringer, utilizing twelve-gauge riser and pan components. Each end of the stair tread is reinforced with a two-by-two by one-quarter inch angle, and the assembly includes a two-inch concrete fill over the metal deck.
Text on the drawing
ALL STAIRS TO BE EPOXY COATING SIM. STAIR STRINGER 3" BRASIVE CAST ALUM. NOSING W/ CONCEALED FASTENERS (ALUMOGRIT BY WOOSTER PRODUCTS OR APP'D EQUAL) L2x2x1/4 TYP. EA. END 2" CONCRETE FILL 12 GA. RISER/PAN STAIR STRINGER CONCRETE OVER METAL DECK, SEE PLAN 1/4 2-6 1/4" CAP PL. SEAL WELD ALL AROUND, GRIND SMOOTH FOR NO SHARP EDGES 3/8" BENT PL. TO MATCH WIDTH OF CMU WITH 3/4" DIA. X 6" LONG NSA ANCHORS AT 8"O.C., CENTERED ON PLATE. ANCHOR TO ALIGN WITH CENTER OF EACH CELL CMU WALL, SEE PLAN 1/4 4" STRINGER TO EMBED TYP. STAINLESS GUARDRAILS SEE PLAN STAINLESS HANDRAIL PER 4/S7.1, PROVIDE 90° ELBOW BACK TO VERT. POST, TYP. 18 STAIR STRINGER AT LANDING
