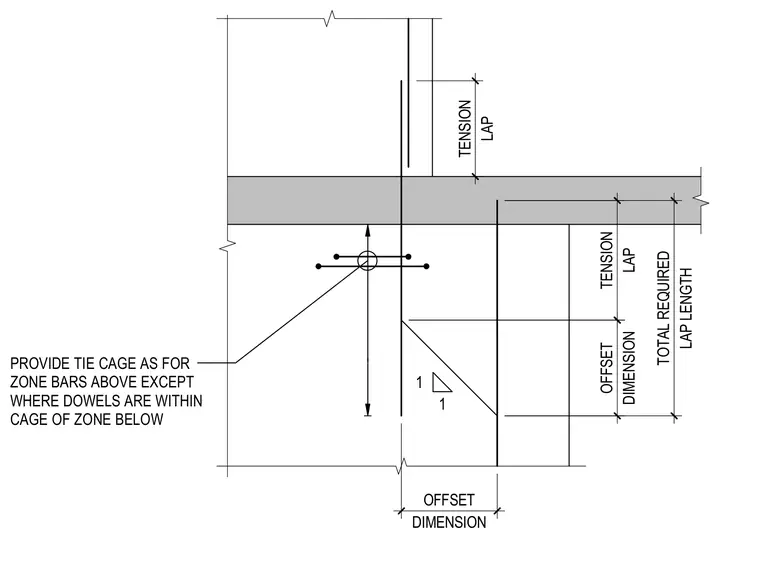

Reinforcing bars in concrete shear walls are spliced with specified tension lap lengths and offset dimensions across construction joints. A tie cage is provided matching the zone bars above, except where dowels fall within the cage of the zone below.
LAP TENSION 1 1 LAP TENSION DIMENSION OFFSET LAP LENGTH TOTAL REQUIRED DIMENSION OFFSET PROVIDE TIE CAGE AS FOR ZONE BARS ABOVE EXCEPT WHERE DOWELS ARE WITHIN CAGE OF ZONE BELOW
