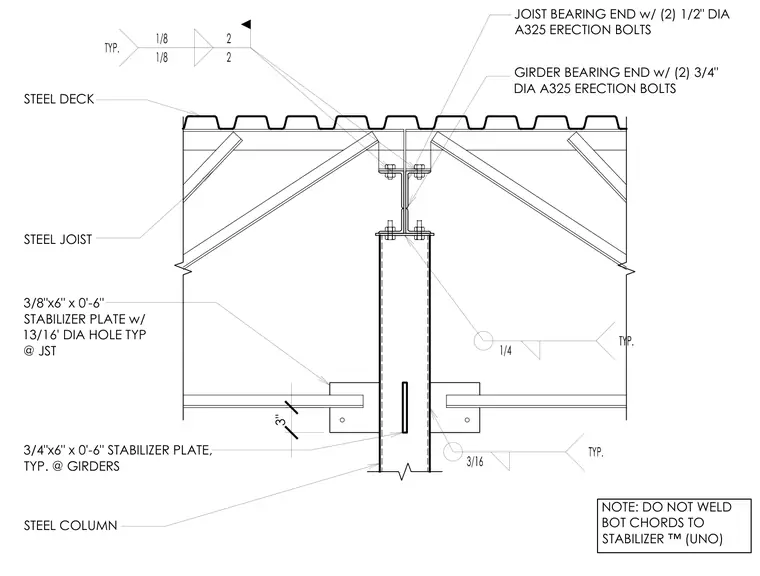

A steel column supports a steel girder with a three-inch bearing end secured by two three-quarter-inch diameter A325 erection bolts. Steel joists bear on the assembly with two half-inch diameter A325 erection bolts at each joist bearing end. Three-quarter-inch by six-inch by zero-foot-six-inch stabilizer plates are provided typically at the girders, while three-eighths-inch by six-inch by zero-foot-six-inch stabilizer plates with thirteen-sixteenths-inch diameter holes are used typically at the joists. Steel deck spans across the top of the framing. Bottom chords are left unwelded to the stabilizer plates.
STEEL COLUMN 3/4"x6" x 0'-6" STABILIZER PLATE, TYP. @ GIRDERS 3/8"x6" x 0'-6" STABILIZER PLATE w/ 13/16' DIA HOLE TYP @ JST STEEL JOIST STEEL DECK NOTE: DO NOT WELD BOT CHORDS TO 67$%,/,=(5812 3" GIRDER BEARING END w/ (2) 3/4" DIA A325 ERECTION BOLTS JOIST BEARING END w/ (2) 1/2" DIA A325 ERECTION BOLTS
