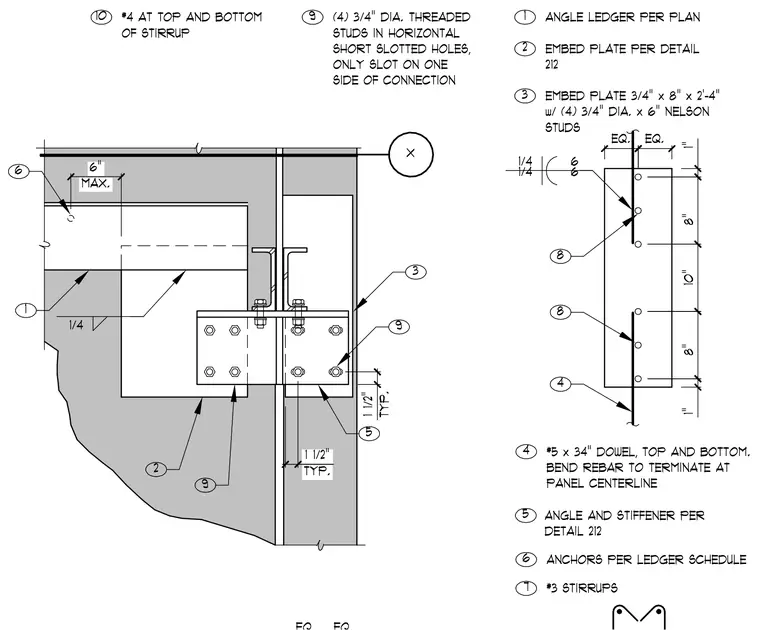

Precast concrete panels connect using an embed plate measuring three-quarters of an inch by eight inches by two feet four inches with four three-quarter-inch diameter by six-inch Nelson studs. An angle ledger per plan connects with a quarter-inch fillet weld, supported by an angle and stiffener per detail two hundred twelve. Four three-quarter-inch diameter threaded studs are placed in horizontal short slotted holes with slots on one side of the connection only. Reinforcing includes number five by thirty-four-inch dowels at the top and bottom with rebar bent to terminate at the panel centerline, along with number three stirrups and number four bars at the top and bottom of the stirrup.
X 1 1/2" TYP. 1 1/2" TYP. 6" MAX. 1" 8" 10" 8" 1" EQ. EQ. ANGLE LEDGER PER PLAN OF STIRRUP #4 AT TOP AND BOTTOM 10 9 SIDE OF CONNECTION ONLY SLOT ON ONE SHORT SLOTTED HOLES, STUDS IN HORIZONTAL (4) 3/4" DIA. THREADED 9 #3 STIRRUPS 8 8 212 EMBED PLATE PER DETAIL 6 1/4 6 1/4 4 5 3 9 2 1 1/4 6 STUDS w/ (4) 3/4" DIA. x 6" NELSON EMBED PLATE 3/4" x 8" x 2'-4" 7 6 ANCHORS PER LEDGER SCHEDULE DETAIL 212 ANGLE AND STIFFENER PER 5 PANEL CENTERLINE BEND REBAR TO TERMINATE AT #5 x 34" DOWEL, TOP AND BOTTOM. 4 3 2 1
