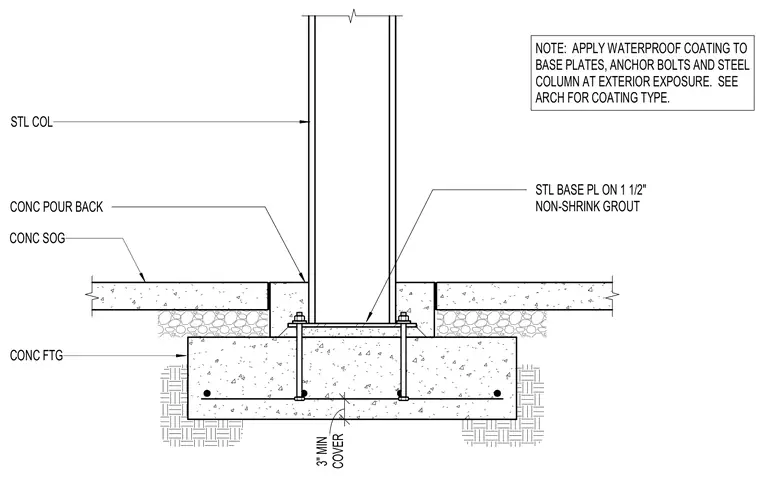

A steel column connects to a steel base plate resting on a one-and-a-half-inch non-shrink grout layer above a concrete footing. Anchor bolts embedded within the concrete footing secure the base plate assembly, maintaining a three-inch minimum concrete cover. A concrete pour back surrounds the column base, meeting the adjacent concrete slab-on-grade. Exterior exposures require a waterproof coating applied to the base plates, anchor bolts, and steel column per architectural specifications.
CONC POUR BACK CONC FTG CONC SOG STL COL STL BASE PL ON 1 1/2" NON-SHRINK GROUT COVER 3" MIN NOTE: APPLY WATERPROOF COATING TO BASE PLATES, ANCHOR BOLTS AND STEEL COLUMN AT EXTERIOR EXPOSURE. SEE ARCH FOR COATING TYPE.
