Typical Composite Beam Details

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks Expansion / Control Joints

Connections

Shear Stud / Composite

About this detail

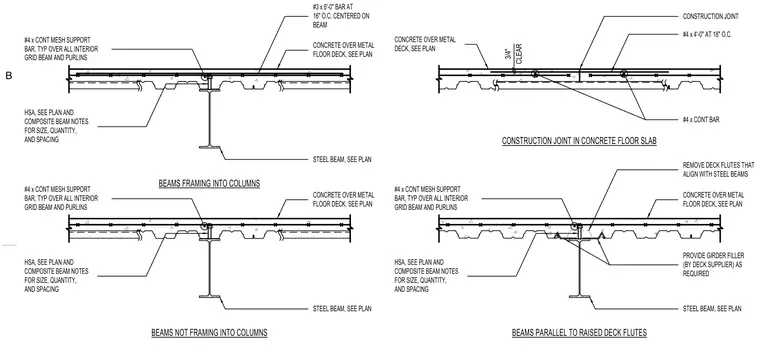

These typical structural details illustrate composite steel beam and concrete floor slab assemblies with varying conditions. The slab consists of concrete poured over a metal floor deck supported by structural steel beams with headed shear stud anchors sized per plan. Additional reinforcement includes continuous number four mesh support bars typically installed over interior grid beams and purlins, supplemented by number three bars at sixteen inches on center centered on specific beams. Construction joints in the concrete floor slab incorporate number four bars at eighteen inches on center alongside continuous number four bars with a three-quarter inch clear spacing. Where beams run parallel to raised deck flutes, specific deck flutes aligning with the steel beams are removed and provided with girder filler by the deck supplier as required.
