Structural · S-KAH3V

Hollow Structural Section Gusset Plate and Cap Plate Connection Details

Materials

Steel

Elements

Columns Walls Roofs Connections / Plates

Connections

Gusset Plate HSS Connection Welded Connection Bolted Connection

About this detail

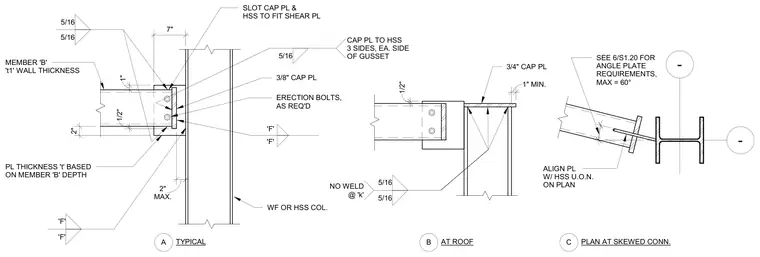

Member B with t1 wall thickness connects to a wide-flange or hollow structural section column using a slotted cap plate and a shear plate, secured with erection bolts as required. A three-eighths-inch cap plate is welded to the hollow structural section on three sides on each side of the gusset with five-sixteenths-inch fillet welds, while leaving the k-area unwelded. At the roof condition, a three-quarter-inch cap plate is detailed with specific clearance dimensions. For skewed connections up to sixty degrees, plates are aligned with the hollow structural section unless otherwise noted on plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
