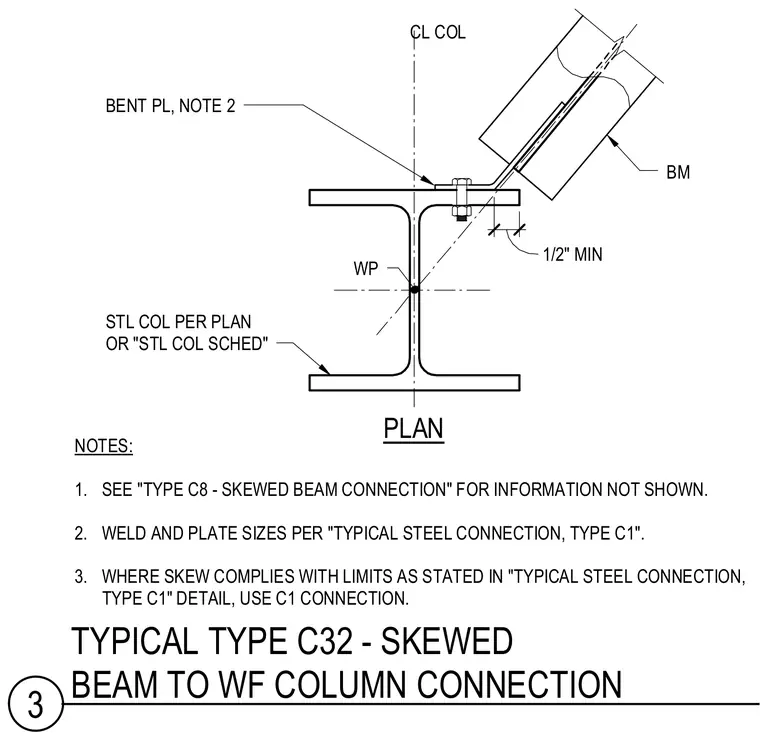

A skewed steel beam frames into a wide-flange column using a bent plate connection. The bent plate aligns with the working point on the column centerline and provides a minimum one-half inch clearance to the beam flange. Weld and plate sizes follow the typical steel connection standard. This connection applies when the beam skew complies with standard limits.
NOTES: 1. SEE "TYPE C8 - SKEWED BEAM CONNECTION" FOR INFORMATION NOT SHOWN. 2. WELD AND PLATE SIZES PER "TYPICAL STEEL CONNECTION, TYPE C1". 3. WHERE SKEW COMPLIES WITH LIMITS AS STATED IN "TYPICAL STEEL CONNECTION, TYPE C1" DETAIL, USE C1 CONNECTION. STL COL PER PLAN OR "STL COL SCHED" PLAN BENT PL, NOTE 2 BM CL COL 1 7/8" WP 1/2" MIN 3 TYPICAL TYPE C32 - SKEWED BEAM TO WF COLUMN CONNECTION
