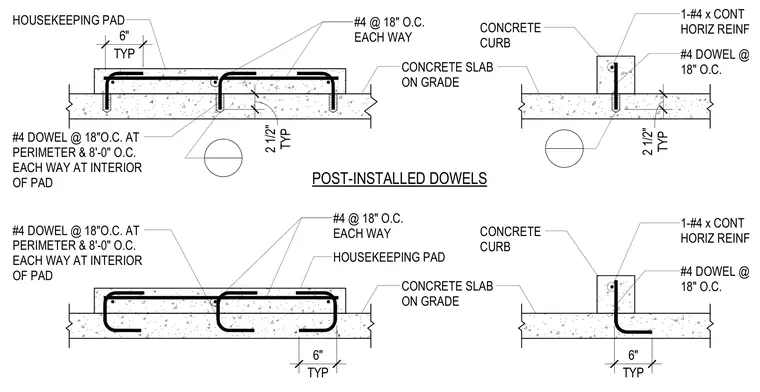

These details show housekeeping pads and concrete curbs supported on a concrete slab on grade. The housekeeping pads are reinforced with number four bars at eighteen inches on center each way, tied to the slab using post-installed dowels or cast-in bent dowels spaced at eighteen inches on center at the perimeter and eight feet on center at the interior. The concrete curbs feature a continuous number four horizontal reinforcing bar with number four dowels at eighteen inches on center tying the curb into the underlying slab on grade. Typical dimensions indicate a two and one-half inch embedment or clearance and typical six-inch dimensions for pad edges and curb geometry.
POST-INSTALLED DOWELS HOUSEKEEPING PAD #4 @ 18" O.C. EACH WAY CONCRETE SLAB ON GRADE HOUSEKEEPING PAD #4 @ 18" O.C. EACH WAY #4 DOWEL @ 18"O.C. AT PERIMETER & 8'-0" O.C. EACH WAY AT INTERIOR OF PAD #4 DOWEL @ 18"O.C. AT PERIMETER & 8'-0" O.C. EACH WAY AT INTERIOR OF PAD 1-#4 x CONT HORIZ REINF CONCRETE CURB #4 DOWEL @ 18" O.C. CONCRETE CURB 1-#4 x CONT HORIZ REINF #4 DOWEL @ 18" O.C. CONCRETE SLAB ON GRADE TYP 2 1/2" TYP 6" TYP 6" TYP 2 1/2" TYP 6"
