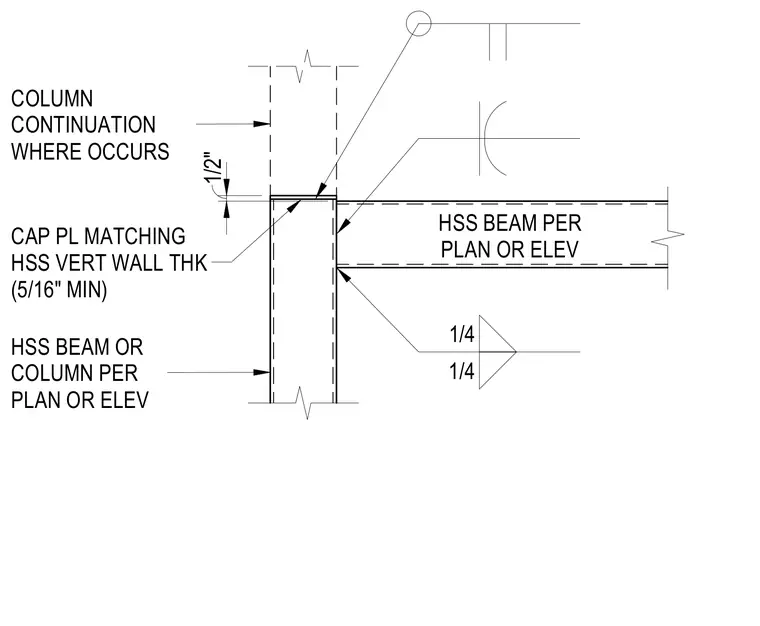

An HSS beam connects to an HSS column using a cap plate matching the vertical wall thickness with a minimum of five-sixteenths of an inch. A half-inch clearance separates the HSS beam from the column continuation where it occurs above. The assembly is secured with quarter-inch fillet welds as specified.
HSS BEAM PER PLAN OR ELEV 1/4 1/4 CAP PL MATCHING HSS VERT WALL THK (5/16" MIN) COLUMN CONTINUATION WHERE OCCURS 1/2" HSS BEAM OR COLUMN PER PLAN OR ELEV
