Concrete Slab on Metal Deck and Steel Beam Edge Detail

Materials

Elements

About this detail

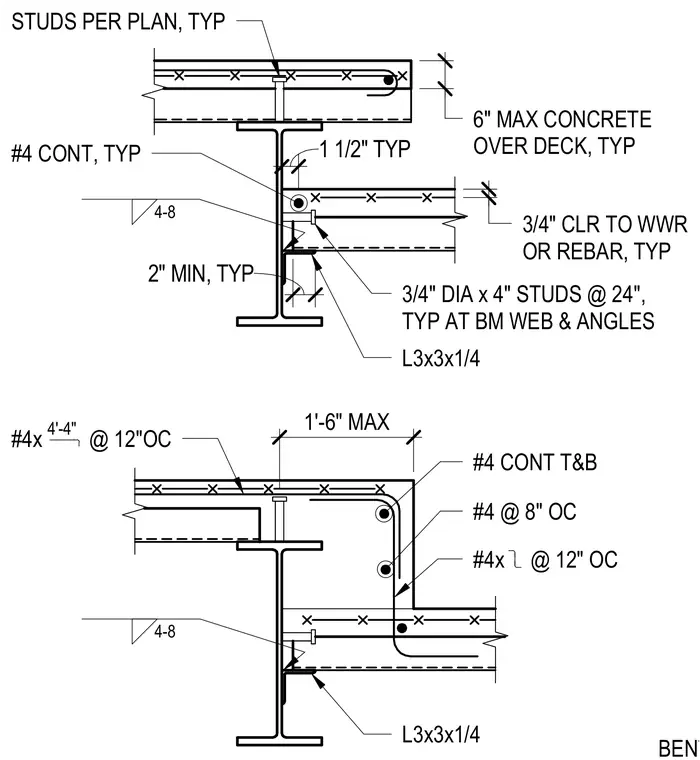

A structural steel beam supports a concrete slab over metal deck with a maximum thickness of six inches, featuring three-quarter inch diameter by four-inch shear studs spaced at twenty-four inches on center at the beam web and angles. Continuous number four reinforcing bars are placed top and bottom with a three-quarter inch clearance to welded wire reinforcement or rebar. An angle size of L3x3x1/4 is attached with welds specified per plan, maintaining a two-inch minimum clearance. Edge conditions include number four bars at eight inches on center and additional reinforcing at twelve inches on center.
