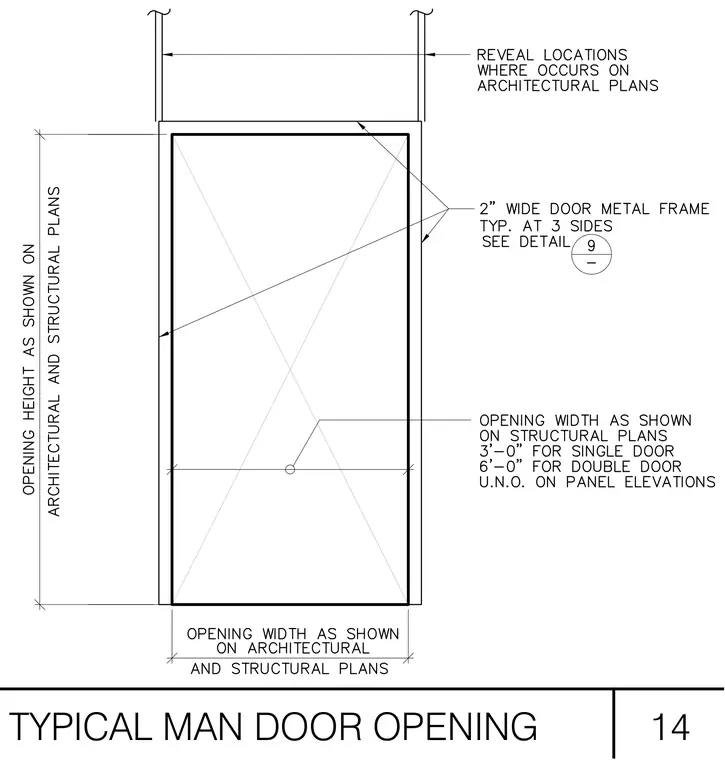

A typical man door opening features a two-inch wide metal frame typical at three sides, referencing detail nine. The opening width measures three feet zero inches for a single door and six feet zero inches for a double door unless noted otherwise on panel elevations, with opening heights and reveal locations coordinated between architectural and structural plans.
