Structural · S-K942C

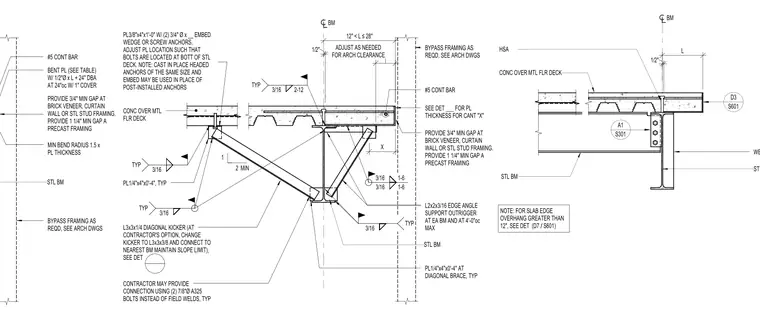

Typical Closure Plate (Overhang L ≤ 12")

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Columns Walls Curtain Walls Facades / Cladding Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

A slab edge closure plate assembly supports concrete over a metal floor deck with a steel beam. A bent plate is anchored with half-inch diameter deformed bar anchors at twenty-four inches on center with one inch of cover. A continuous number five bar reinforces the concrete slab edge. An L2x2x3/16 edge angle supports the outringer at each beam and at four feet on center maximum. An L3x3x1/4 diagonal kicker braces the overhang, with an option to substitute an L3x3x3/8 angle connected to the nearest beam maintaining slope limits. Plate connections use three-sixteenths inch fillet welds or optionally two seven-eighths inch diameter A325 bolts. Minimum gaps of three-quarters inch are provided at brick veneer, curtain walls, or steel stud framing, and one and one-quarter inch at precast framing.
